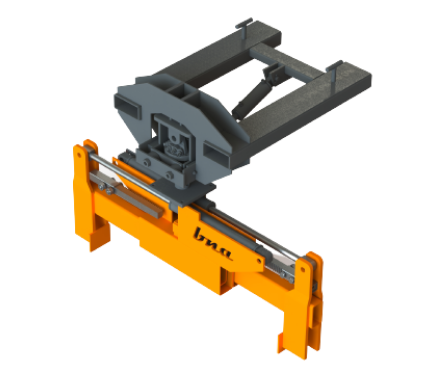

Bordure Attachment

Name: Bordure Attachment
Brand: BNA

Bordure Attachment is a forklift attachment manufactured with BNA’s 25 years of production experience. Each unit is built to suit your forklift model and capacity; contact us for detailed technical information and a quotation.

Quotation Form

Fill in the form and our team will get back to you with a quotation as soon as possible.

Call Us WhatsApp

Technical Specifications

BORDURE ATTACHMENT

PRODUCT CODE	CAPACITY Q · kg	LOAD CENTER LC · mm	MOUNTING CLASS ISO · 2328	OPENING RANGE A1 / A2 · mm	CHASIS WIDTH WC · mm	CHASIS HEIGHT H · mm	CHASIS LENGTH E · mm	PAD WIDTH WP · mm	LOST LOAD INSTANCE E · mm	C.o.G. C · mm	WEIGHT M · kg
BAR2A-Q07-25.145	500	850	2A / 3A	250-1450	1600	1200	1250	250	1150	850	400
BAR2A-Q07-35.155	500	850	2A / 3A	350-1550	1600	1200	1250	250	1150	850	400
BAR2A-Q07-45.160	750	850	2A / 3A	450-1600	1600	1200	1250	350	1150	850	450
BAR2A-Q07-55.185	750	850	2A / 3A	550-1850	1600	1200	1250	350	1150	850	450

1 hydraulic function.
It is used in loading-unloading and stacking of building materials such as bims, briquettes, hollow blocks and borders.
360° is infinite rotation in both directions. In this way, stones can be stacked in the desired position.
